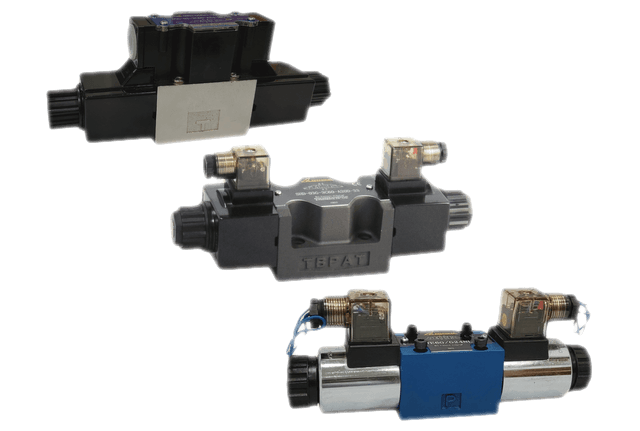

HYRAULIC SOLENOID OPERATED DIRECTIONAL VALVES

SHD-02G SERIES

Terminal box / Din-plug connector / Leader wire

Maximum operating pressure :315 kg/cm(Spool 6 and 60 types 250 kg/cm only)

Rated flow capacity :63 1/min

Maximum T line back pressure :140 kg /cm

Maximum frequency of operation :160 cycle/min

Filtration : 25 Micron

Ambient temperature range : -5c ~ 60c

Weight:

• Double solenoid AC 2 kgs /DC 2.3 kgs
• Single solenoid AC 1.7kgs /DC 1.8kgs

SHD-03G SERIES

Terminal box / Din-plug connector / Naked mounting bolt

Maximum operating pressure :315 kg/cm(Spool 6 and 60 types 250 kg/cm only)

Rated flow capacity :100 1/min

Maximum T line back pressure :140 kg /cm

Maximum frequency of operation :160 cycle/min

Filtration : 25 Micron

Ambient temperature range : -5c ~ 60c

Weight:

• Double solenoid AC 4.6 kgs /DC 5.8 kgs
• Single solenoid AC 3.8 kgs /DC 4.4kgs

SHD-06G SERIES

Maximum operating pressure :250 kg/cm(Spool 6 types and 210 kg/cm only)

Rated flow capacity :04-150 1/min , 06-300 1/min , 10-800 1/min

Maximum pilot pressure : 4.5 kg /cm

Maximum T line back pressure :140 kg /cm

Maximum frequency of operation :120 cycle/min

Filtration : 25 Micron

Ambient temperature range : -5c ~ 60c
